PRODUCT
Stainless Steel Tube Production Line

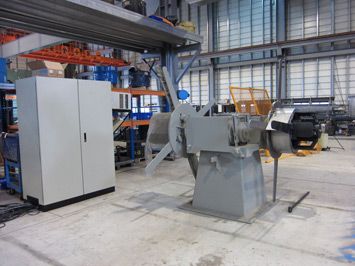

Uncoiler
Strip Jointer
Accumulator- Horizontal Accumulator
Welder-TIG Welder
Welder- Plasma Welder+ TIG Welder
Welder-TPT Welder
Welder- TTT Welder
In-line Annealing
Polisher
Detector- in-line ECT
Detector- off-line ECT
Sample-SS Seam Welding
| Model | Driven Shaft | OD Range | Thickness | Max. Speed (m/1') | AC Vector Motor (hp) | Welder | Annealing Power |
| LM-30 | Ø30mm | Ø 5~16mm | 0.25~0.8t | 9 | 10+10 | TIG | 50kw |
| LM-30X | Ø30mm | Ø 8~25mm | 0.25~1.2t | 9 | 10+10 | TIG | 100kw |
| LM-40 | Ø40mm | Ø12~38mm | 0.5~2.5t | 4/8 | 15+15 | TIG/TTT | 100kw |
| LM-50 | Ø50mm | Ø16~51mm | 0.5~3.5t | 3/6 | 20+20 | TTT/TPT | 100kw |
| LM-50X | Ø50mm | Ø19~65mm | 0.5~3.5t | 3/6 | 20+20 | TTT/TPT | 150kw |
| LM-65 | Ø65mm | Ø25~76mm | 0.7~4.5t | 2.5/5 | 30+30 | TTT/TPT | 200kw |
| LM-80 | Ø80mm | Ø38~114mm | 0.9~6.0t | 2/4 | 40+40 | TTT/TPT | 300kw |
| LM-90 | Ø90mm | Ø89~168mm | 1.5~7.0t | 1.5/4 | 40+40 | TPT+W | 400kw |
| LM-100 | Ø100mm | Ø114~219mm | 1.5~8.0t | 1.5/3 | 50+50 | TPT+W | 400kw |
| LM-120 | Ø120mm | Ø139~323mm | 2.0~9.0t | 1/2 | 75+75 | TPT+W | 600kw |
| LM-150 | Ø150mm | Ø273~406mm | 3.0~9.0t | 1/2 | 75+75+75+75 | TPT+W | 800kw |
| LM-200 | Ø200mm | Ø355~508mm | 4.0~12.0t | 1/2 | 100+75+75+75 | K+TPT+W | 1000kw |
| LM-240 | Ø240/200mm | Ø406~610mm | 4.5~12.0t | 1/2 | 100+100+100+100 | K+TPT+W | 1200kw |
