S.S. Welding Equipments
Product Features
- Fully sealed enclosure design protects the system from dust and acidic air, significantly reducing failure rates and extending service life

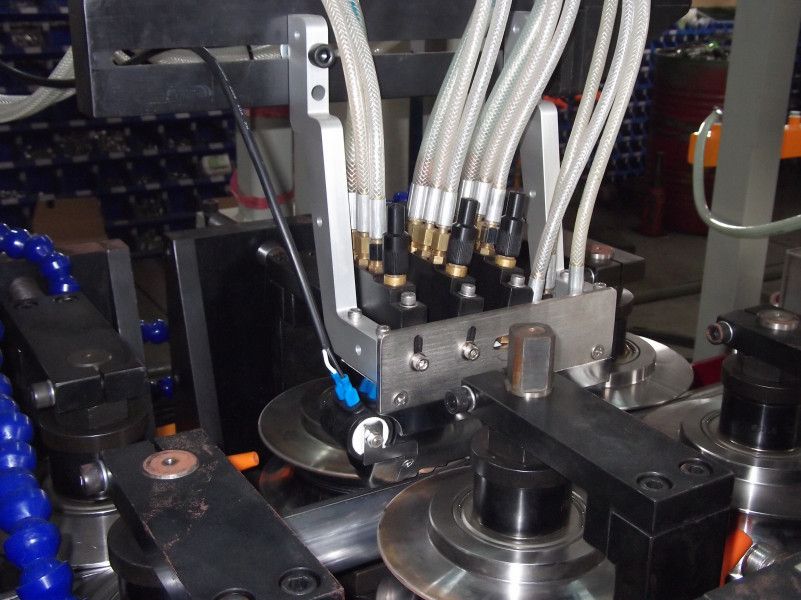

- Supports single-torch, twin-torch, or tri-cathode torch configurations to meet different tube thickness requirements
- Integrated design synchronized with the forming tube mill, linked to the tube mill's production process, and stable production
- Water-cooled 500A Pulse Plasma and TIG welding system for high thermal stability and continuous operation
- Built-in line voltage compensation maintains consistent weld quality even with ±10% voltage fluctuations
- Water pressure sensor protects torch(es) from damage caused by insufficient cooling water
Performance Advantages
- Real welding plasma jet current exceeding 300A
- 20–40% faster welding speed compared to conventional plasma systems
- Produces smooth, stable, and high-quality weld beads
System Integration
Designed to be fully linked with the tube mill production line, enabling synchronized forming and welding processes for maximum efficiency, reliability, and automation.
| Model | OD Range | Thickness |
| GP P+T 500cw | Ø21~219mm | 1.0~8.0t |
| GP TTT 500cw | Ø25~114mm | 1.0~3.0t |
| GP TPT 500cw | Ø42~168mm | 2.5~9.5t |
| GP TPT 500cw+W | Ø219~610mm | 3.0~9.5t |
