ERW Tube Forming Mill Production Line
H model driven by 3 sets heavey duty gears.

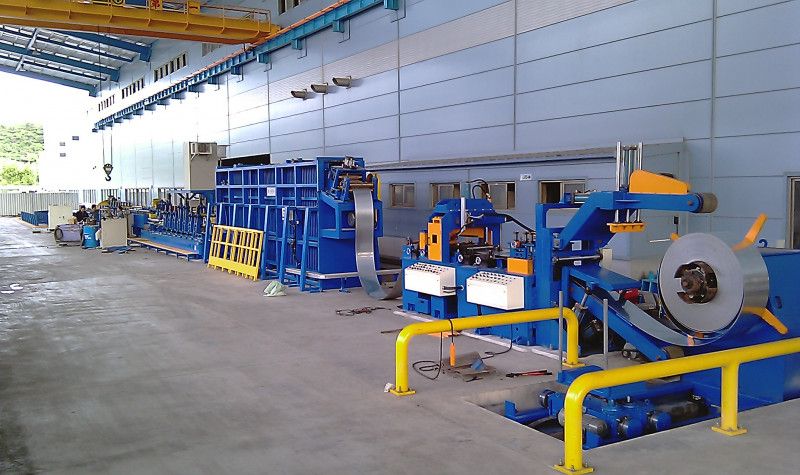

 ▲ Uncoiler & Strip Jointer |  ▲ Accumulator-Cage |  ▲ Accumulator-Horizontal Accumulator |
 ▲ Vertical-Accumulator |  ▲ Rigid Gear for Heavy Duty Mode |  ▲ ERW for SUS 409 Tube |
 ▲ Welder- H.F. Welder |  ▲ ID Scraping Tool |  ▲ Zinc Arc Spary |
 ▲ N.C Cutter |  ▲ Friction Cutter |  ▲ Press Cutter |
 ▲ Sample- Finished ID Scraping |  ▲ Sample- Small OD with Heavy Wall |  ▲ Sample- 409 Pipe Extension Test |
 ▲ Sample-SS304 tube Bending Test |
| model | Driven shaft | OD Range | Thickness | Max.Speed (m/1') | AC Vector Motor (hp) | HF Welder |
| LM-30HF | Φ30mm | Φ8~16mm | 0.3~1.2t | 120 | 30+30 | 100kw |
| LM-40HF | Φ40mm | Φ12~32mm | 0.5~2.0t | 120 | 40+40 | 100kw |
| LM-50HF | Φ50mm | Φ16~51mm | 0.7~2.5t | 100 | 50+50 | 150kw |
| LM-60HF | Φ60mm | Φ16~65mm | 0.7~3.2t | 90 | 75+75 | 150kw |
| LM-70HF | Φ70mm | Φ19~76mm | 0.9~4t | 90 | 100+100 | 200kw |
| LM-90HF | Φ90mm | Φ38~114mm | 1~5t | 80 | 125+125 | 250kw |
| LM-90HF-H* | Φ90mm | Φ38~114mm | 1.5~7t | 80 | 125+125+200 | 300kw |
| LM-110HF | Φ110mm | Φ90~168mm | 2~6t | 50 | 200+200 | 300kw |
| LM-110HF-H | Φ110mm | Φ90~168mm | 2~9t | 50 | 150+150+250 | 400kw |
| LM-120HF | Φ120mm | Φ114~219mm | 2~8t | 30 | 200+200 | 400kw |
| LM-130HF | Φ130mm | Φ114~273mm | 2.5~9t | 30 | 200+250 | 400kw |
| LM-130HF-H | Φ130mm | Φ114~273mm | 2.5~12t | 30 | 200+200+250 | 500kw |
| LM-150HF | Φ150mm | Φ139~325mm | 3~10t | 20 | 200+250 | 600kw |
